Product Description
|
BASIC INFO
|
|
|
Model No.
|
WinPad W86L
|
|
Operation System
|
for Windows 10 home
|
|
Dimension
|
228*145*16.5mm
|
|
Net weight
|
715g (include battery)
|
|
Gross weight
|

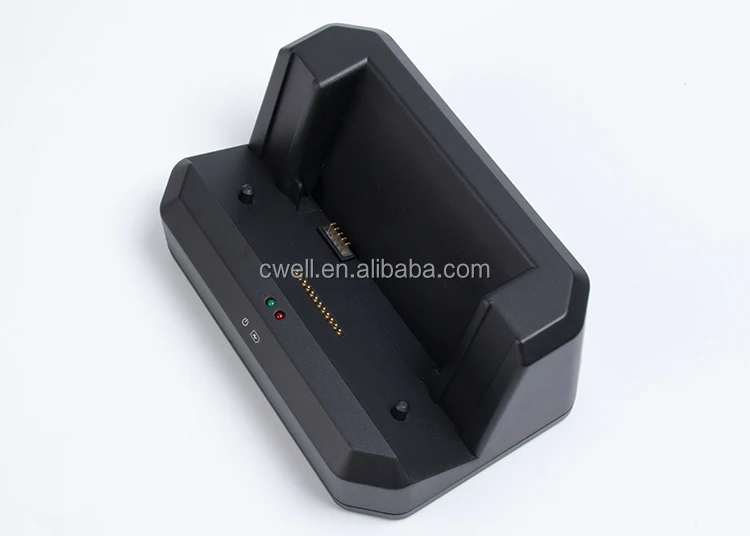

1330g (Unit with giftbox and standard accessories), docking：290g
|
|
Color
|
Black (Optional: bottom shell in silver color, front shell in black)
|
|
Languages
|
Multi-languages
|
|
HARDWARE
|
|
|
Display
|
8.0 inch anti-scratched IPS capactive touch screen, 800*1280px, 450Nit, support handwriting
|
|
CPU
|
Intel Baytrail-T(Quad-core ), Z3735F, 1.33 GHz-1.83 GHz
|
|
GPU
|
Intel HD Graphic(Gen7)
|
|
RAM
|
2GB DDR3L
|
|
ROM
|
64GB EMMC, support TF card up to 128GB max
|
|
Camera
|
Front camera: 2.0MP with indicator light, rear camera: 5.0MP
|
|
Battery
|
built-in 3.7V/8500mAh polymer li-ion battery
|
|
Sensors
|
G-sensor
|
|
NETWORK & CONNECTIVITY
|
|
|
Band
|
2G: GSM 900MHz/1800 MHz/1900MHz
|
|
3G: WCDMA 900/2100MHz
|
|
|
4G: FDD-LTE B1/B3/B7/B8/B20/B28A (EU Standard)
|
|
|
WIFI
|
IEEE 802.11b/g/n/ac, support dual-band Wi-Fi (2.4G+5G)
|
|
BT
|
V4.1 (BLE) class 1 transmission distance：10m
|
|
GNSS
|
Built-in U-blox NEO-7, support GPS
|
|
I/O INTERFACES
|
|
|
TF card
|
x1
|
|
SIM card port
|
x1
|
|
∮3.5mm earphone port
|
x1
|
|
12pin Pogo Pin
|
x1
|
|
USB port
|
USB 2.0 x 1（Host）Micro USB x1
|
|
HD-MI port
|
V1.4a Type C x1
|
|
DC jack
|
5V 3A ∮3.5mm Power connector x1
|
|
Speaker
|
Embedded 8Ω/0.8W waterproof speaker x 1
|
|
Mic
|
Sensitivity:-42db, output resistance 2.2kΩ
|
|
RELIABILITY
|
|
|
Waterproof
|
IP67
|
|
Drop-proof
|
MIL-STD-810G 1.22m drop
|
|
Temperature range
|
Working temperature: '-20 °C~60 °C; Storage temperature: '-30 °C~70 °C
|
|
Humidity range
|
95% Non-Condensing
|
|
OPTIONAL FUNCTION
|
|
|
NFC
|
Optional, NXP NFC, Card reading distance：4cm
|
|
1D Module
|
SE655E100R
|
|
2D Module
|
SE4710 Hardware decoder （MOTO 2707module is optional）
|
|

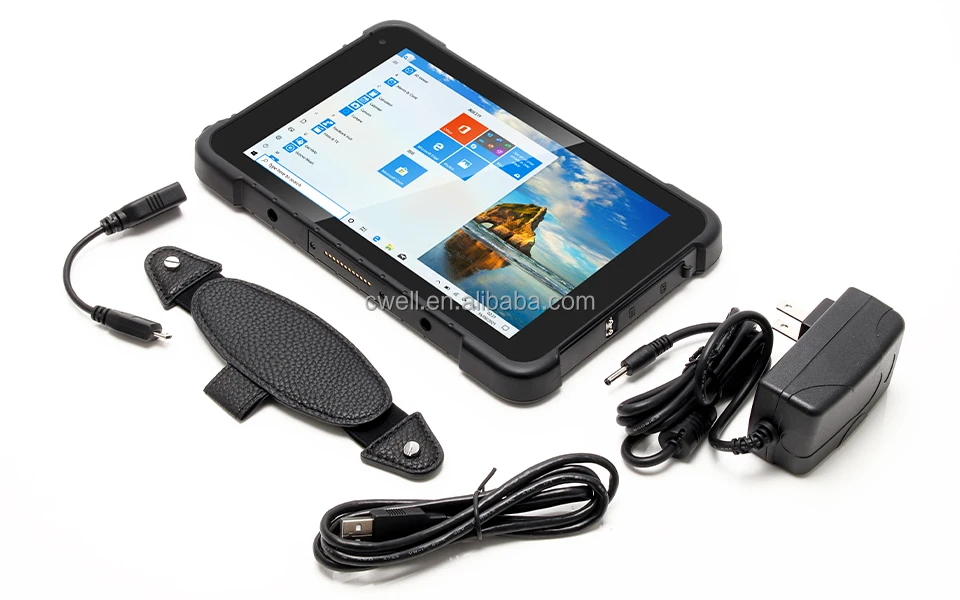

ACCESSORIES
|
|
|
OTG cable
|
x1
|
|
USB cable
|
x1
|
|
Power adaptor
|
x1(5V/3A)
|

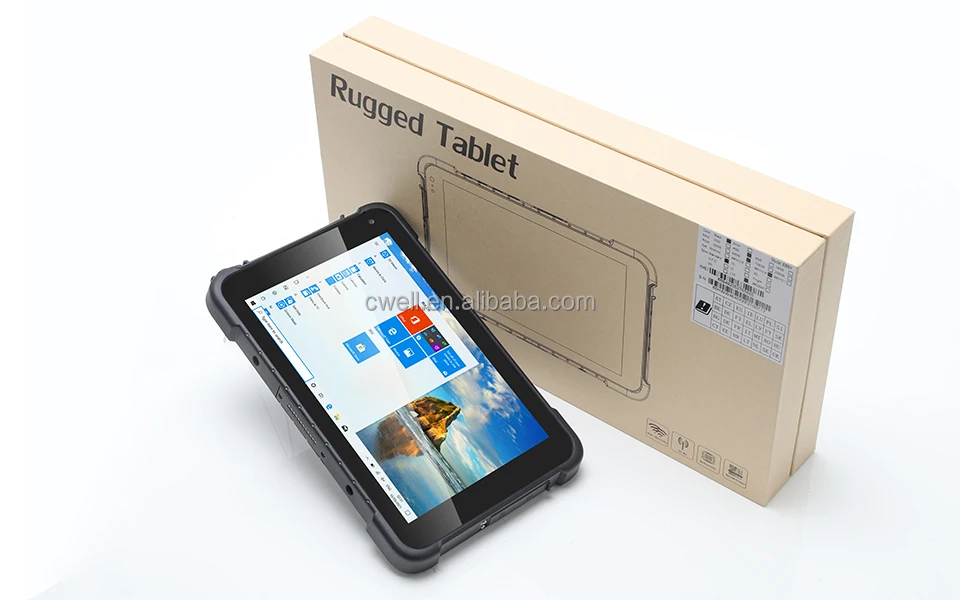

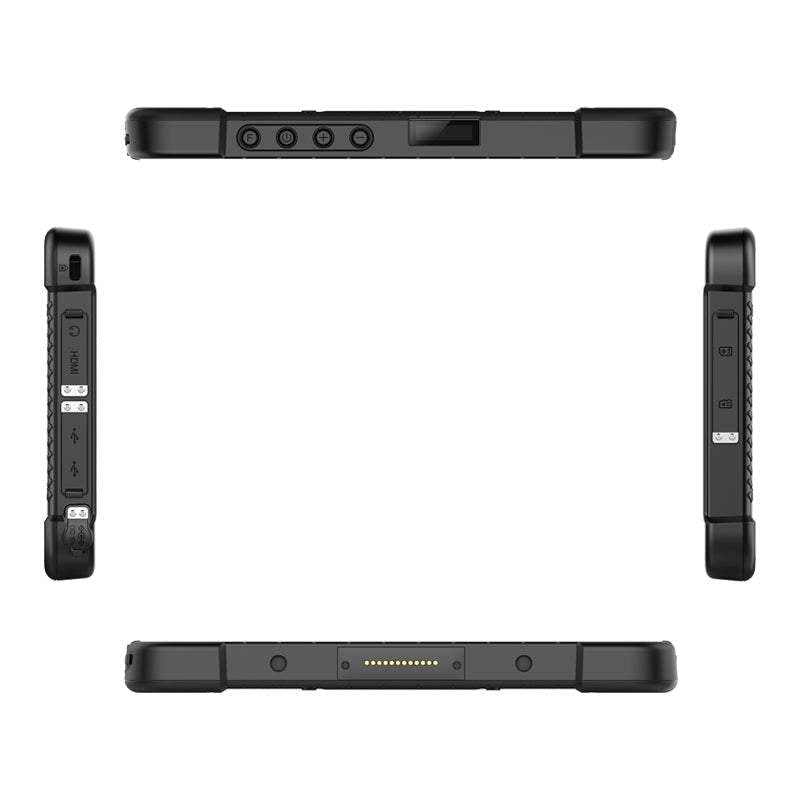

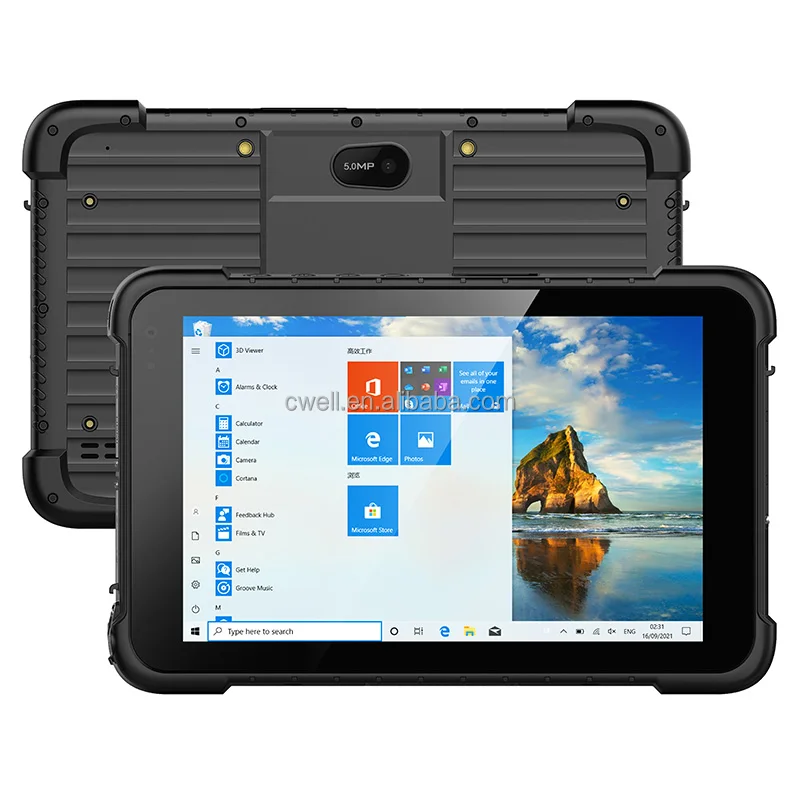

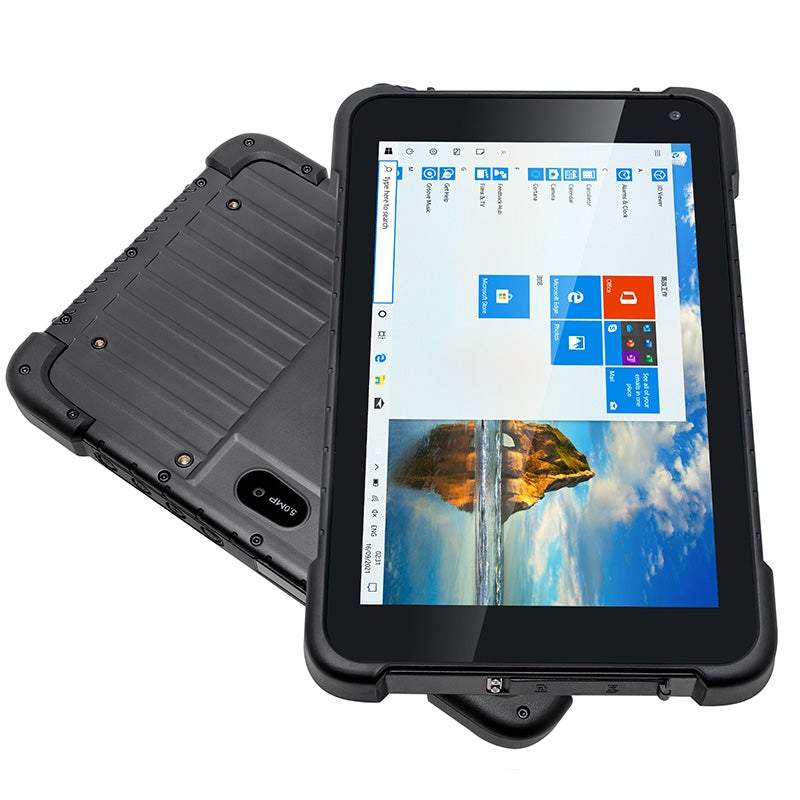

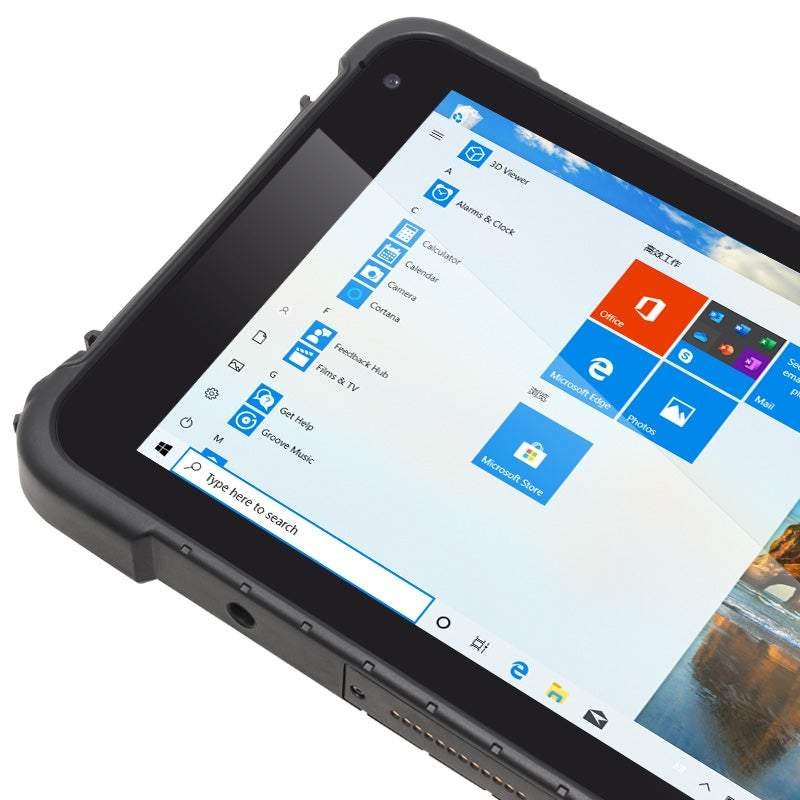

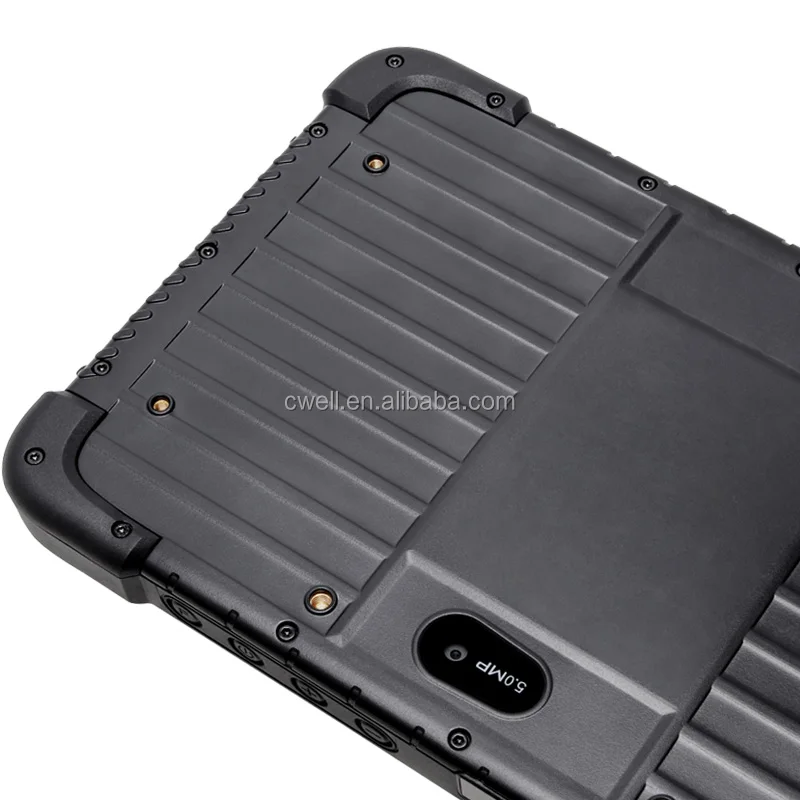

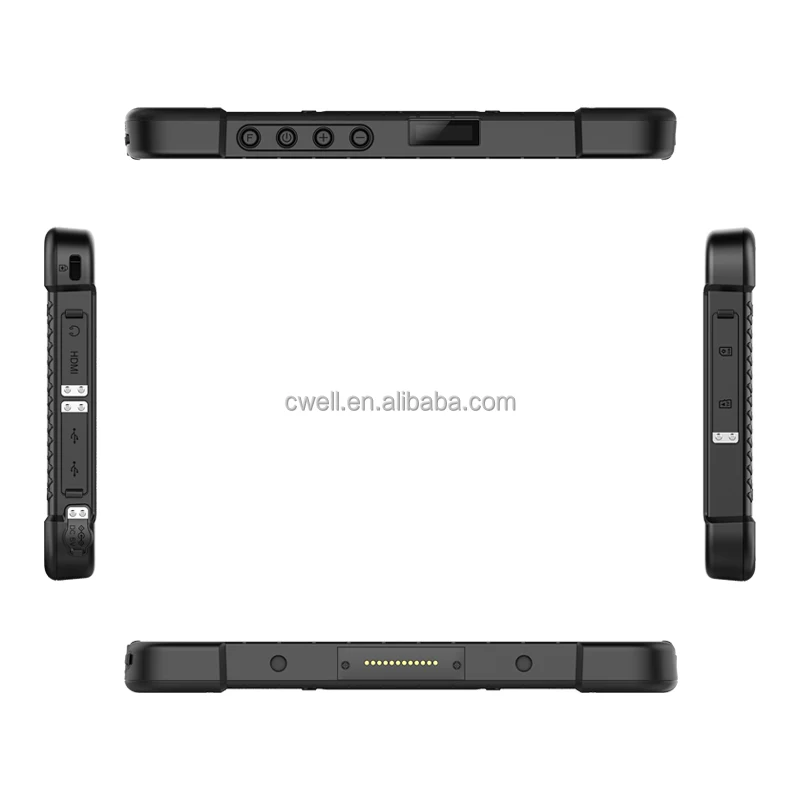

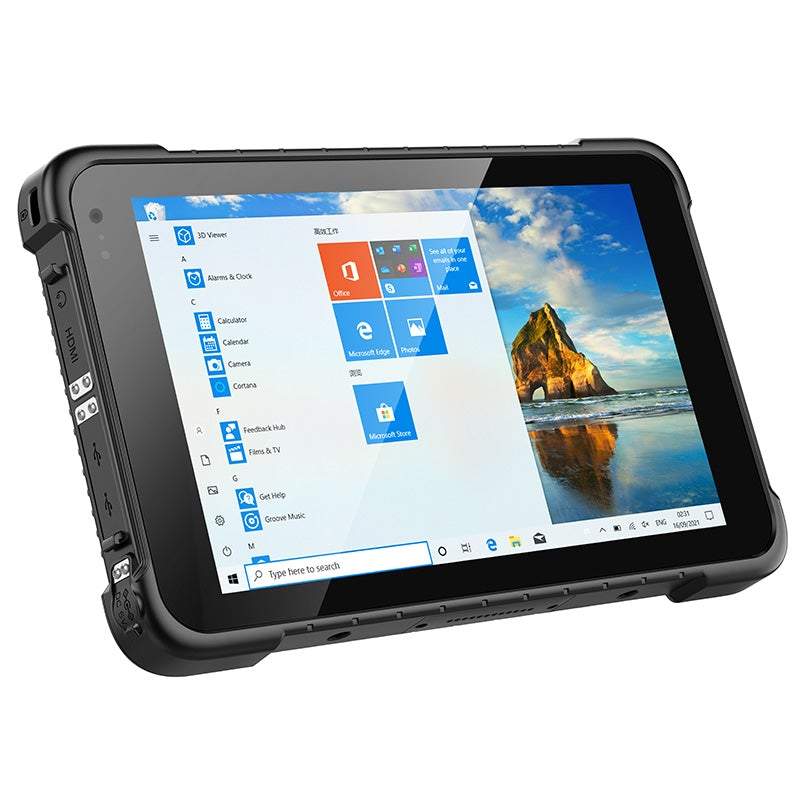

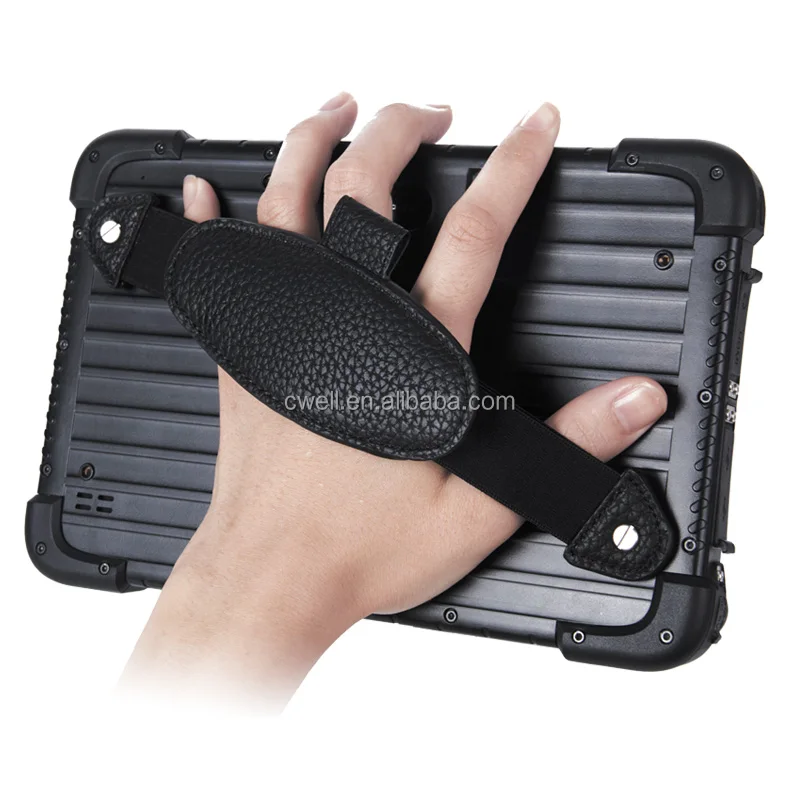

Product Photos
